PyFirmata summary

For using a firmata (Respberry <-> Arduino) you must install it on:

• Arduino (Firmata - Arduino)
• Raspberry Pi (Firmata - Raspberry Pi)

Statement of connection types:

device/connection type	get_pin(...) string	available values
relay shield	d:pin_no:o	0 and 1
DC motor	d:pin_no:p	0.0 - 1.0
servo	d:pin_no:s	0 - 255
analog input (*)	a:pin_no:i	0.0 - 1.0

(*) you must start reading analog input:

from pyfirmata.util import Iterator
...
board = ArduinoMega('/dev/ttyUSB0')
iterator = Iterator(board)
iterator.start()
...

Example use servo:

from pyfirmata import ArduinoMega
board = ArduinoMega('/dev/ttyUSB0') # Arduino usb port
servo = board.get_pin('d:2:s')      # pin PWM no 2
servo.write(50)                     # set servo position 0-255

Temperature sensor LM35

We need:

• Arduino with firmata library (Firmata - Arduino)
• Raspberry Pi with python and firmata package (Firmata - Raspberry Pi)
• Temperature sensor LM35 (specification: http://www.ti.com.cn/cn/lit/ds/symlink/lm35.pdf)

Sensor LM35:

Connections schema:

We can connect LM35 to 5V or 3.3V, it doesn't matter.


Photo from my LM35 connections:

Example python app lm35_test.py:

from pyfirmata import ArduinoMega
from pyfirmata.util import Iterator
import time

board = ArduinoMega('/dev/ttyUSB0') # connect to arduino usb port

iterator = Iterator(board) # start reading analog input
iterator.start()

pinTemp = board.get_pin('a:0:i') # set valid in analog pin

while True:
    voltage = pinTemp.read() # read voltage input
    if voltage is not None: # first read after startup is somtimes None
        temp = 5.0*100*voltage # convert voltage to temperature
        print "{0} Celsius".format(temp)
        time.sleep(1) # 1 second waiting

Run python environment (see Firmata - Raspberry Pi (part 2)), for example:

# cd robot/python_firmata_test/
# source bin/activate

and run app:

# python2.7 lm35_test.py

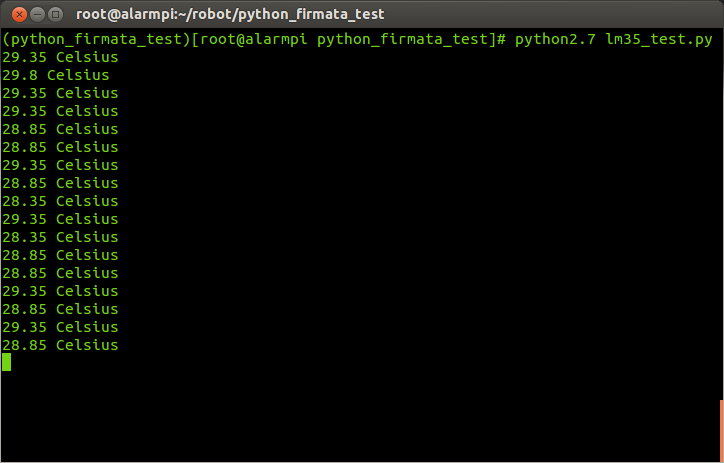

Screenshoot form app:

LM35 is theoretically appropriately calibrated but in my opinion, given the temperature is overestimated by about 2-4 degrees Celsius. I had a reference (room thermometer;) ) thermometer.

links:
http://raspberrypi-aa.github.io/session3/firmata.html
http://www.ladyada.net/learn/sensors/temp36.html
http://www.ti.com.cn/cn/lit/ds/symlink/lm35.pdf

Relay shield control

We need:

• Arduino with firmata library (Firmata - Arduino)
• Raspberry Pi with python and firmata package (Firmata - Raspberry Pi)
• relay shield

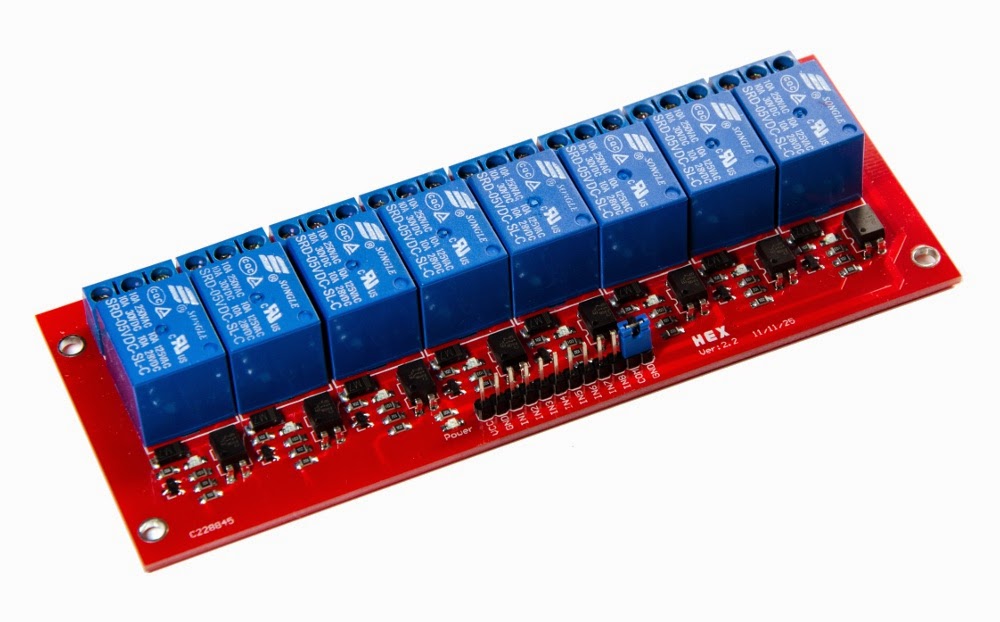

Relay shield:

Connections schema:

Photo from my relay shield connections:

Simple app to blinking relay connect to 22 pin:

from pyfirmata import ArduinoMega, time
board = ArduinoMega('/dev/ttyUSB0')
servoA = board.get_pin('d:22:o')

while True:
   servoA.write(1)
   time.sleep(1)
   servoA.write(0)
   time.sleep(1)

Command line completely app relay_example.py:

from pyfirmata import ArduinoMega, time
board = ArduinoMega('/dev/ttyUSB0')
firstPin = 22 # number first pin, app use 8 pins

__copyright__ = "Copyright 2014, http://letsmakearobot.blogspot.com/"
__version__ = "0.1.0"
__license__ = "GPL"
__email__ = "sebastian.dziak@gmail.com"

def info():
    print "------------------------------------------------"
    print "Command parameters:"
    print "  1-8 - relay no"
    print "  0-1 - relay status (0 - off, 1 - on)"
    print "  ...and exit from app: exit"
    print
    print "Examples:"
    print "  2 1 #set on relay no 2"
    print "  2 0 #set off relay no 2"
    print "  5 1 #set off realy no 5 "
    print "  exit"
    print "------------------------------------------------"

def validate(position):
   if not position is None and (float(position)<0 or float(position)>255):
      return "Invalid parameter!"

info()

pins = []
for n in range (0, 8):
   pinNo = firstPin + n
   pins.append( board.get_pin('d:'+str(pinNo)+':o') )

while True:
   cmdLine = raw_input('Relay_no(1-8) set_status(0-1):')
   if cmdLine == 'exit': break
   args = cmdLine.split()
   pins[int(args[0])-1].write(int(args[1]))

print "goodbye"

Run python environment (see Firmata - Raspberry Pi (part 2)), for example:

# cd robot/python_firmata_test/
# source bin/activate

and run app:

# python2.7 relay_example.py

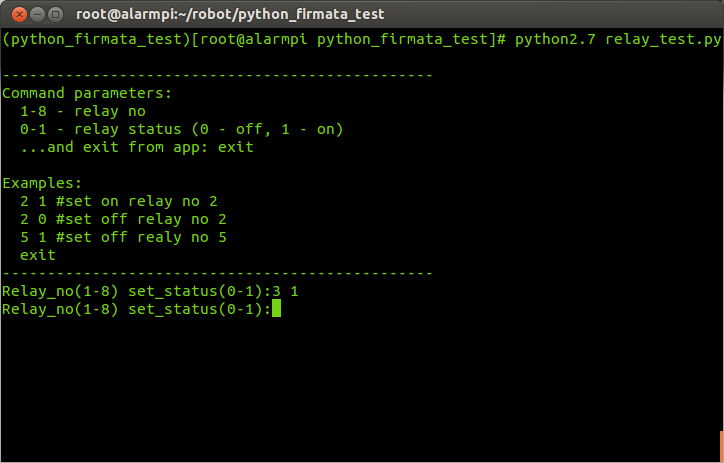

Screenshoot form app:
